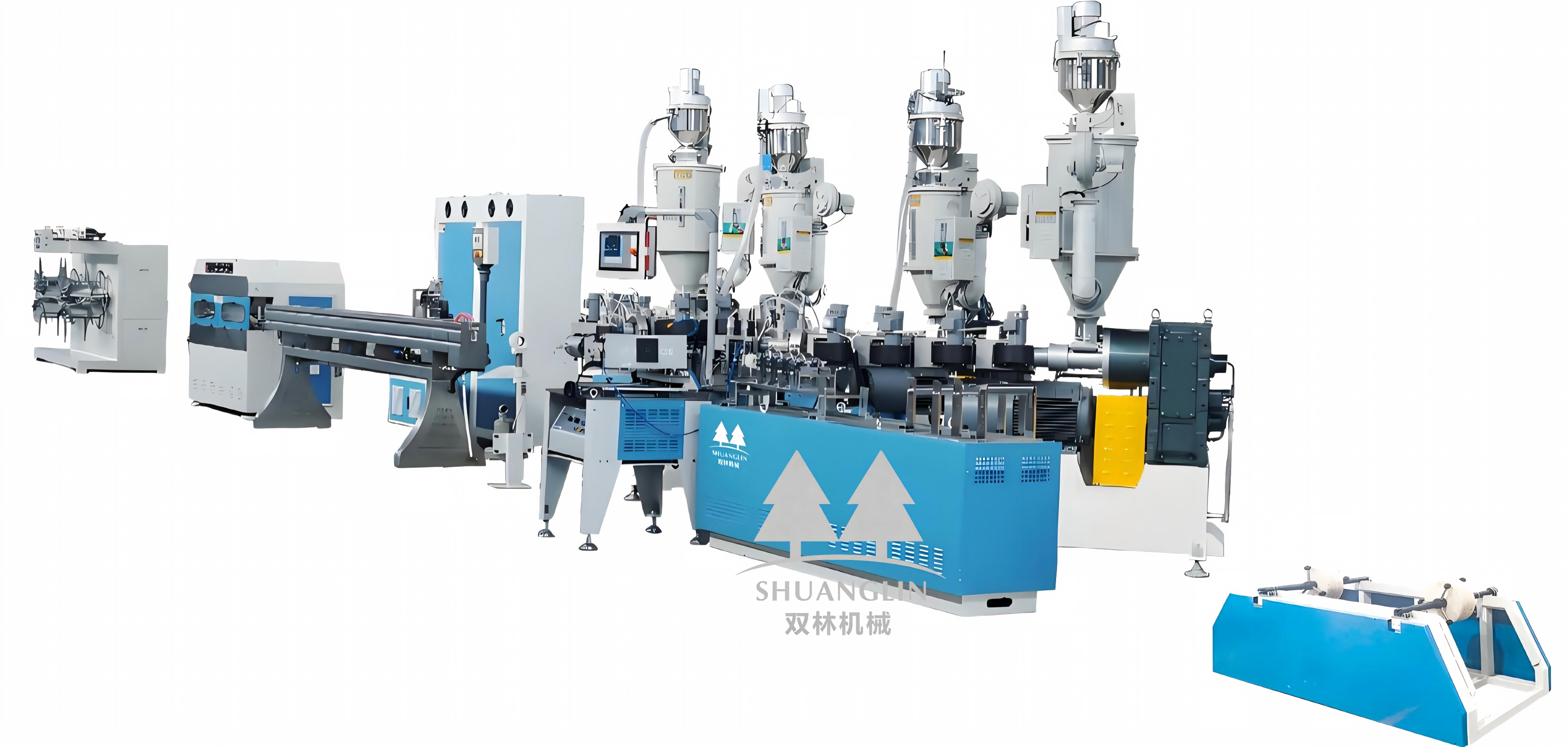

Overlap Welding PAP Composite Pipe Production Line

Technical Features 技术特点：

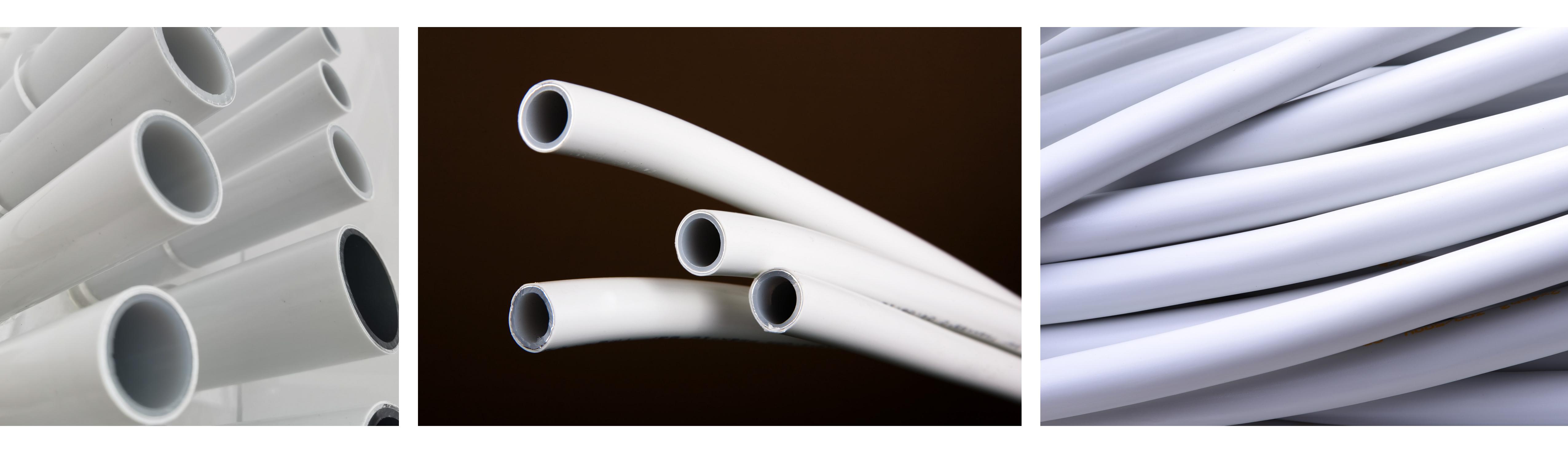

1. The overlap welding PEX-AL-PEX composite pipe is made for PE-Xb, PERT, PE and PPR material. It adopts a high-precision passive aluminum on line forming machine with a welding effect testing system, guaranteeing the high roundness and precise dimensions. The outer plastic-glue and inner plastic-glue adapt two step co-extrusion technology, improving the plastic-aluminum adhesion quality, and making it much easier to adjust and start the production, as well as different sizes. Online air pressure testing device tests if the welding strength qualified.

2. AL accumulation and connection systems ensure reliable AL connections during continuous production.

3. Advanced ultrasonic welding technology at high speed with on-line welding seam pressure detecting system.

4. Online pressure clamping and full-automatic winding technology.
